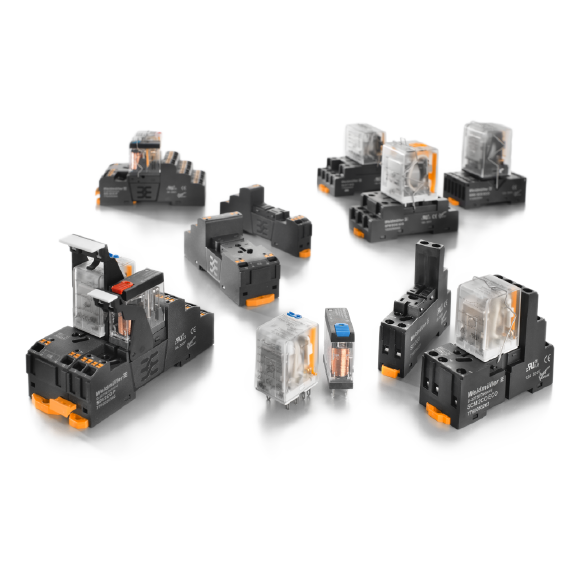

Weidmuller D-SERIES Relay modules
D-SERIES
Relay modules specifically designed for universal usage in a wide range of industrial applications
Highly reliable industrial relays
Our D-SERIES offers economical relays for the separation of input and output signals in industrial automation. These universal relays have many sophisticated details and are available in different designs. Conventional relays and LED indicators are simply plugged in, and retaining clips provide a secure fixing.
Your benefits at a glance
Great variety in one series
Thanks to their many different designs, our D-SERIES modules have a wide range of features that make them suitable for various applications.
Reliable quality
The D-SERIES is designed for industrial applications with a wide range of robust relay pinning types.
Solutions for special applications
Special miniature contactors and relay modules to switch high DC loads up to 220 V DC.

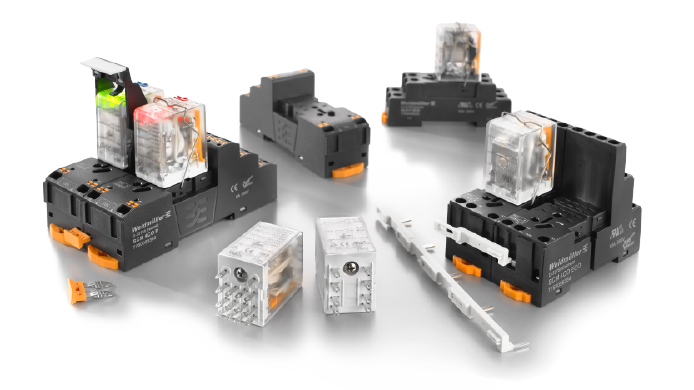

Our product range
Thanks to their many different designs, our D-SERIES industrial relay modules have a wide range of features that make them suitable for various applications.
Your benefits
- Control voltages from 12 V to 230 V
- Switching currents from 5 A to 30 A
- 1 to 4 changeover contacts
- Variants with built-in LED or test button
- Tailor-made accessories from cross-connections to marker
- Available with PUSH IN or screw connection

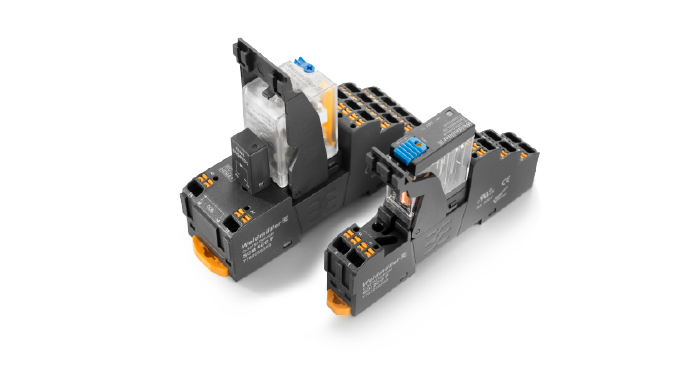

DRM
Our miniature industrial relays of the D-SERIES DRM are available from 25 mm width and are suitable for reliable contact multiplication in compact design.
Features
- 2 CO contacts (10 A) and 4 CO contacts (5 A)
- Variants with built-in LED, protective circuit, or test button
- Test button with coloured control voltage identification (AC coil: red, DC coil: blue)
- Suitable accessories from the cross-connections to the protective circuit
- Available with PUSH IN and screw connection
Application range
Special loads
If special loads such as inductivities or high inrush currents are to be switched or monitored safely and reliably, you need individually tailored relay modules and solid-state relays. These customised solutions extend the service life oft he switching element and, what‘s more, they can be installed in the panel in a space-saving manner thanks to optimised connection options.
