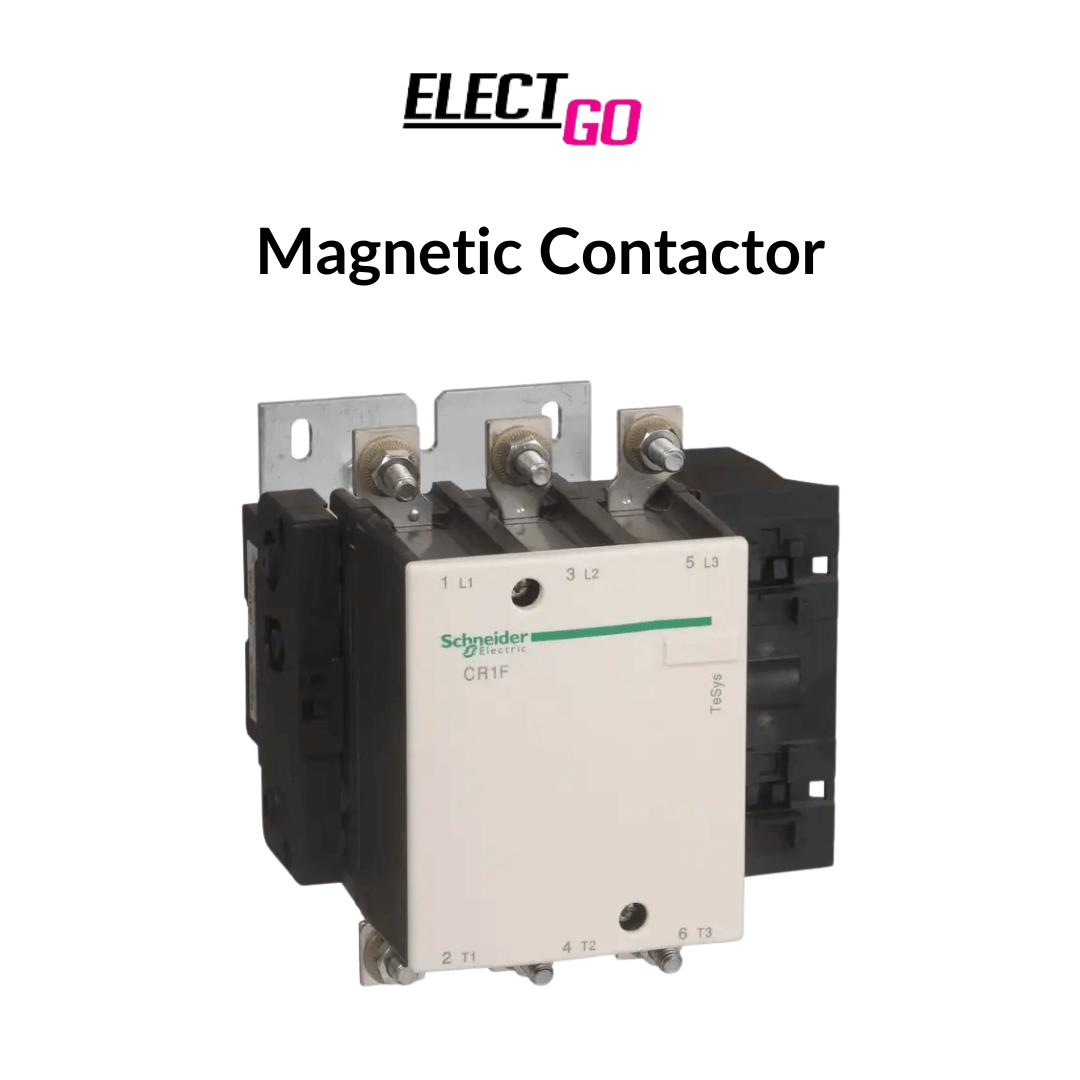

What is a magnetic contactor?
A magnetic contactor is an electrical switching device. It is used for switching an electrical circuit on and off. It is a special type of relay, but there is a basic difference between the contactor and a relay. The contactor is mostly used in applications where higher current carrying capacity is involved, while the relays are used for lower current applications. Contactors are compact and can be field-mounted easily. Usually, these devices feature multiple contacts. The contacts are mostly normally open, and they provide operating power to the load whenever the contactor coil is powered. Contactors are popularly used with electric motors.
How does the magnetic contactor work?
The core mechanism of this component is due to the electromagnetism. The flow of electric current is efficient in producing a magnetic field in the coil of a contactor. This magnetic field, in turn, draws several contacts closer to form a complete circuit and allow current to flow. When the current decreases, the magnetic field disappears, and the contacts leave the previous position and open the circuit again.
This single mechanism is indeed efficient and gives full control over electrical circuits. Since contacts and switching occur without touching each other, this considerably minimizes friction and wear, which in turn prolongs the life span of the electrical systems.
What are the types of magnetic contactors?
There are three main types of magnetic contactors:
1. AC magnetic contactors
- Design to control AC electrical loads.
- Commonly used in industrial settings where high voltage, high current, or both are required.
- Well-suited for harsh environments.
- The internal design is essential for efficiently and safely operating large machines, air conditioning units, and other heavy motors
2. DC magnetic contactors
- Use in DC systems that utilize direct current.
- Commonly found in automobile systems, photovoltaic installations, and locations with significant direct current flow.
- Used foremost in electric vehicles and solar power along with battery storage systems due to their good performance.
3. Miniature magnetic contactors
- More diminutive outputs of standard contactors.
- Suitable for use in areas with limited space, such as control panels, small machinery, and home automation systems.
Related article:
ElectGo offers wide range of contactors from various brands including ABB , Schneider Electric , and Fuji Electric
Application of magnetic contactor

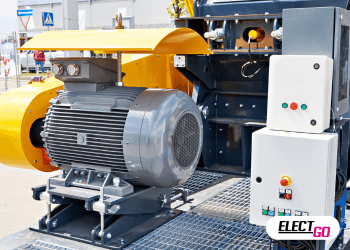

Motor Control
Magnetic contactors are often useful in offering a safe and effective manner of switching the motors on and off and protecting against overload currents. This application is vital where the performance of the motor is vital, including industrial areas where safety is an issue
Lighting Control
It allows extensive control of large lighting systems and helps control energy use while ensuring uniform brightness. This is especially true in commercial complexes, stadiums, and other public areas, where the concern is more about the lighting system's efficiency and reliability.

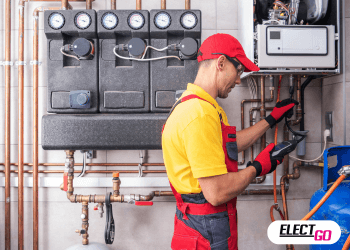

HVAC Systems
HVAC systems utilize magnetic contactors to operate the heating, ventilation, and air conditioning systems. These contractors regulate the power input of the compressors and the fan, which in turn regulates the efficiency of the equipment.
Industrial Automation
Magnetic contactors facilitate accurate control over the equipment and operations, making production more efficient and cutting down on the time when the equipment is not in use. Magnetic contactors are used in manufacturing, line production, and automated processing, which crucially require high accuracy and reliability.

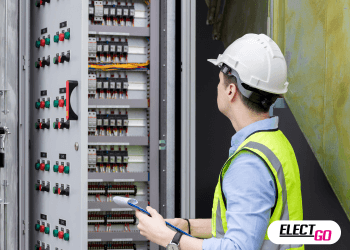

Power Distribution
Magnetic contactors regulate the power supply to the different sections within the network. These types are used to guarantee stable work and prevent faults and overload in the circuit. This application of magnetic contactor is very important in ensuring that electric power networks are stable and secure, especially in the large power systems that are characteristic of most large cities around the world and industrial complexes
Elevators and Escalators
It regulates the motion and guarantees the correct and secure functionality of these programs. It is, therefore, important that magnetic contactors used in vertical transport equipment in buildings be reliable.

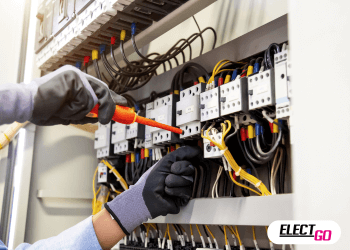

Safety Systems
These contractors offer safety precautions in the event of a power surge and other calamities about the instrument. Thus, in critical safety applications, the dependability of magnetic contactors is of utmost importance, the main purpose of which is to safeguard lives and valuable property.
