Efficient Panel Engineering

When you downsize, you can:

• Reduce transportation costs, thanks to compact and lighter panel components.
• Support machine builders with the possibility to downsize their overall facilities, equipment, and panels.
• Increase added value by providing more compact control panels.
• Indirectly reduce the size of production lines to support multi-purpose and multi-speed production equipment.
• Inject greater flexibility when re-arranging production lines due to additional free space within the panel.


Benefits

• Reduce panel dimensions by up to 20% - We provide a wide range of compact panel components to help reduce the total size of your panel by up to 20%.
• Slim design with a minimum width of 6.2 mm - Using slim products creates space within the control panel. This provides greater flexibility to allow for design changes and component additions.

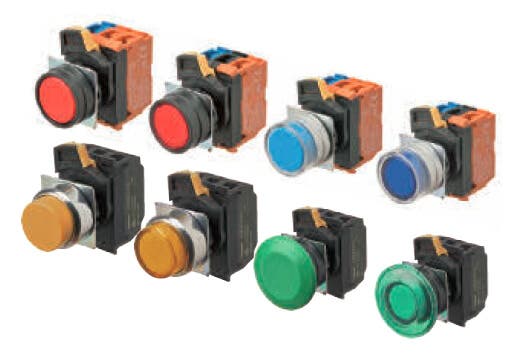

• On-panel components with a maximum depth of 70 mm - Our short-bodied on-panel components use less space within the control panel, enabling it to be downsized.


Ideal for

• Machine builders (OEMs)
• Panel builders
• End-users

CAD/CAE software is fast, efficient, and indispensable these days. But even the best program can be limited by the database that powers it. That’s why we are introducing EPLAN and Zuken eCAD data for our main panel components and devices.

Developers can download a digital data record from our portal that contains all the essential data about a product in electronic format and can be used to seamlessly integrate the drawings (parts data), documents, etc. contained within the data record into the CAD/CAE program.
